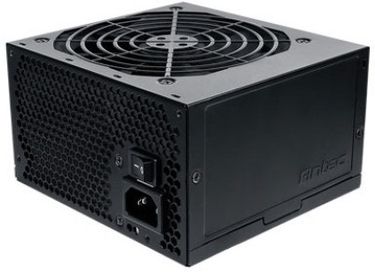

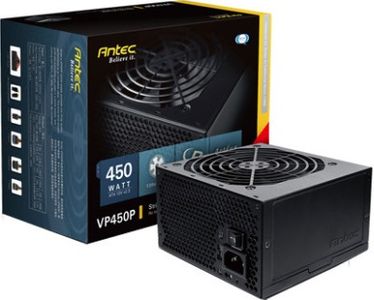

Antec VP450P I 450W SMPS Specifications
In The Box
| Sales Package | SMPS Unit, Cables, User Guide |
General
| Brand | Antec |
| Power Output | 450 W |
| Series | Basiq Series |
| ATX & EPS Version | ATX 12V v2.3 |
| Model Name | VP450P I |
| Power Rail | 2 x 12V Power Rails |
| Part Number | VP450P AP |
Other Features
| Additional Features | EuP 2010 Compliant |
Power
| Power Factor Correction (PFC) | Active PFC with Value of 0.99 |
| Input Voltage 1 | 200 - 240 V |
| Input Current | -4.5 A |
| Input Frequency | 47 - 63 Hz |
| Efficiency | 82 % |
| Mean time between failures (MTBF) | 1,00,000 hr |
Maximum Current
| Current at DC Output of +3.3 V | 15 A |
| Current at DC Output of +5 V | 24 A |
| Current at DC Output of -12 V | 0.3 A |
| Current at DC Output of +V2 V | 18 A |
| Current at DC Output of +V1 V | 18 A |
Connectivity
| Motherboard | 1 Motherboard Connector with 20 + 4 pin |
| CPU | 1 CPU Connector with 4 + 4 pin |
| PCI-e | 1 PCI-e 6 pin |
| SATA | 4 SATA Cables |
| Floppy | 1 Floppy Connector with 4 pins |
| Peripheral | 4 Peripheral Connector with 4 pins |
Features
| Protection | Over Current Protection (OCP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Power Protection (OPP) |
| Safety Standards | CB, TUV, C-Tick, CCC, CE, Gost-R, CUL |
| Fan Type | 1 x 120 mm Quiet Operation |
Dimensions
| Weight | 1.5 kg |
| Width x Height x Depth | 150 x 86 x 140 mm |
