Asus A88XM-A Motherboard

Name: Asus A88XM-A Motherboard
Brand: Asus Motherboards
Availability: InStock
Rating: 4.5 (600 reviews)

Asus A88XM-A Motherboard Share on

Asus Motherboards

₹14999.00

Latest Motherboards

Intel Motherboards

MSI Z370 Tomahawk DDR4 Motherboard

₹21000.00

Zebion Motherboards

Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard

₹45000.00

Intel Motherboards

Intel Desktop Board DZ77GAL-70K Motherboard

₹17500.00

Intel Motherboards

Asus A88XM-A Motherboard Specifications

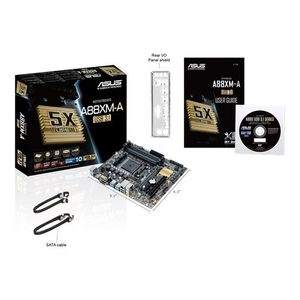

In The Box

Sales Package

Motherboard, SATA Cables, Rear I/O Panel Shield, SATA Cable and Supporting CD Software

General

Brand	Asus
Model ID	A88XM-A

Essentials

Form Factor	ATX
Socket Type	FM2
Compatible Processors	AMD Athlon Processors, AMD A-Series Processors
Chipset	AMD A88X
Chipset Manufacturer	AMD

Connectivity

Ethernet Controller	Realtek 8111G
Ethernet Features	1 x Gigabit LAN Controller

Memory

Number of Memory Slots	4 Slots
Memory Configuration	64 DDR3 Dual Channel DIMM
Memory Frequency	2133 MHz, 2400 (O.C) MHz, 1866 MHz, 1333 MHz, 1600 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s	AMD A88X FCH
RAID Controller	AMD A88X
RAID Configurations	0, 1, 5, 10, JBOD

Audio

Audio Codec	Realtek ALC887 VD
Audio Channels	8
Audio Features	High Definition Audio CODEC, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Graphics

Integrated Graphics card

Yes

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	2.0, 1
PCIe x16 Slots, Generation	3.0/2.0, 1

Internal I/o Headers

SATA 6 Gb/s Headers	6
USB 2.0 Headers	2
USB 3.0 Headers	1
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Other Connectors	1 x 24-pin EATX Power Connector, 1 x System Panel, 1 x Internal Speaker Connector, 1 x 4-pin ATX 12 V Power Connector, 1 x S/PDIF Out Header

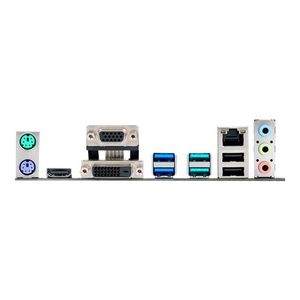

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	2
VGA/D Sub Ports	1
DVI Ports	1
Audio I/O Channels	3
HDMI Ports	1
RJ-45 Ethernet Jacks	1
PS/2	2

General Features

OS Support	8 (32-bit, 64-bit), 7 (32-bit, 8.1 (32-bit, Windows: XP (32-bit), 64-bit), 64-bit)
Support CDs	Drivers, Asus Utilities, Asus Update, Anti-virus Software (OEM Version)
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 4.0a, Multi-language BIOS, Asus EZ Flash 2, Asus CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen, F3 Shortcut Functions and Asus DRAM SPD (Serial Presence Detect) Memory Information
Features	Network iControl, Disk Unlocker, Asus EZ DIY, Asus EPU, Asus ESD Guards - Enhanced ESD Protection, Asus 5X Protection: Asus DIGI+ VRM - 3 + 2 Phase Digital Power Design, USB 3.0 Boost, Supports HDMI with Maximum Resolution 4096 x 2160 at 24 Hz / 1920 x 1200 at 60 Hz, Asus Enhanced DRAM Overcurrent P...View More Network iControl, Disk Unlocker, Asus EZ DIY, Asus EPU, Asus ESD Guards - Enhanced ESD Pro
Advanced Technologies	Supports AMD Turbo Core 3.0 Technology, AMD Dual Graphics Technology Support
Advanced Features	Supports CPU Upto 4 Cores

Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
