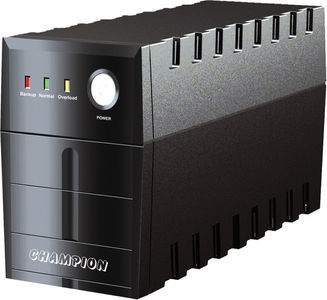

Champion UPS-800 800 VA Line Interactive UPS

Champion UPS-800 800 VA Line Interactive UPS Share on

₹2599.00
flipkart ₹2599.00 Go to store

Latest Uninterrupted Power Supplies

Luminous Uninterrupted Power Supplies - Luminous Shakti Charge Plus 1150VA Home UPS
Luminous Uninterrupted Power Supplies

Luminous Shakti Charge Plus 1150VA Home UPS

₹6299.00
Luminous Uninterrupted Power Supplies - Luminous Shakti Charge Plus 1150VA Home UPS
Luminous Uninterrupted Power Supplies

Luminous Shakti Charge Plus 1150VA Home UPS

₹6299.00
Relicell Uninterrupted Power Supplies - Relicell 12V 50AH UPS Battery
Relicell Uninterrupted Power Supplies

Relicell 12V 50AH UPS Battery

₹7180.00
Relicell Uninterrupted Power Supplies - Relicell 12V 50AH UPS Battery
Relicell Uninterrupted Power Supplies

Relicell 12V 50AH UPS Battery

₹7180.00
Zebronics Uninterrupted Power Supplies - Zebronics ZEB-U111 600VA UPS
Zebronics Uninterrupted Power Supplies

Zebronics ZEB-U111 600VA UPS

₹2870.00
Zebronics Uninterrupted Power Supplies - Zebronics ZEB-U111 600VA UPS
Zebronics Uninterrupted Power Supplies

Zebronics ZEB-U111 600VA UPS

₹2870.00
Relicell Uninterrupted Power Supplies - Relicell Solar Gel 12V 200AH UPS Battery
Relicell Uninterrupted Power Supplies

Relicell Solar Gel 12V 200AH UPS Battery

₹24910.00
Relicell Uninterrupted Power Supplies - Relicell Solar Gel 12V 200AH UPS Battery
Relicell Uninterrupted Power Supplies

Relicell Solar Gel 12V 200AH UPS Battery

₹24910.00
CyberPower Uninterrupted Power Supplies - CyberPower UT600E 600VA UT Series UPS
CyberPower Uninterrupted Power Supplies

CyberPower UT600E 600VA UT Series UPS

₹3100.00
CyberPower Uninterrupted Power Supplies - CyberPower UT600E 600VA UT Series UPS
CyberPower Uninterrupted Power Supplies

CyberPower UT600E 600VA UT Series UPS

₹3100.00

Champion UPS-800 800 VA Line Interactive UPS Specifications

Environmental Features

Maximum Operating Altitude 3000 m
Maximum Operating Temperature 45 degree C
Noise Level <60dB
Maximum Storage Altitude 5000 m
Minimum Operating Temperature 0 degree C
Storage Temperature 0 to 45 degree C

General

Brand Champion
Cold Start Yes
Used For Maximum Load Support 800VA / 480W, Computer/PC/Desktop, Any LED/LCD TV upto 70 Inch, Printer/Scanner, Game Console, Router, Music System
Model ID 800VA UPS plus
Type Line-interactive
Overload Capacity 1.2
Phase 1
Model Number 800VA Stabilizer +
Overload Protection Yes
Generator Compatibility No
Model Name Line Interactive
Certification ISO 9001 : 2008 guidelines certified by ABS quality Evaluations Inc USA, and ISO 14001:2004 guidelines certified by MAX Certifications Pvt Ltd, Mumbai
Technology Used Line Interactive
Form Factor Tower Model
Color Black

In The Box

UPS with Power Cable, User Manual

Operational Conditions

Minimum Operating Temperature (° C) + Maximum Operating Temperature (° C) 0 - 45 Degree C

Convenience Features

Low Battery Indicator Yes
Display Indicator Functions Normal/Charging, Backup, Overload/Fault
Serial Port No
Audible Indicator Functions AC Fail, Battery Low, Overload
Other Convenience Features Easy to install and easy to handle, Quick Charge, Small, light weight, compact and maintenance free, Wide Input Range (145~280VAC), 3 Indian Output Sockets, Suitable for Indian Power Condition, Product Catalogue at http://www.championups.com/products/index.html
LED Indicator Function AC Normal : Solid Green Indication, Back-up : Flashing Red Indication, Battery Low / Overload : Fast Blinking Red Indication, Charging : Fast Green Indication
Digital Display No
Emergency Power Off Yes

Performance Features

Other Performance Features Manual Bypass, Automatic Voltage Regulation, Output Waveform: Stepped Approximation to Sine Wave, Full Safety from Short Circuit, Overload, Unsafe voltage levels etc., Wide Input Range from 145V to 280V, 3 Indian Output Sockets, Support any household appliances, Back-up Time: 20 mins
Automatic Reset Yes
Manual Reset Yes
Output Voltage Correction Yes
Audio Alarm Yes
Circuit Breaker Yes
Trip Delay Yes
Spike Suppressor Yes

Body

Mount Type Wall, Floor
Display Type LED
Indicator Type LED
Surge Indicator No
Material Plastic
Other Body Features Portable and Easy to install and easy to handle

Safety Features

Under Volt Protection Yes
Overload Protection Yes
Other Safety Features Yes, Fuse Protection
Over Volt Protection Yes
Surge Protection Yes
Phase Reversal Protection Yes

Battery Features

Recharge Time 5 - 8 hours
Replacement Battery No
Battery Capacity 12V/9Ah
Half Load Runtime 25 min
Other Battery Features Battery Recharge Time, 5 ~ 8 hours
Battery Voltage 230 V
Number of Batteries 1 (internal)
Full Load Runtime 15 min
Hot-swappable Battery No
Battery Type Sealed Lead Acid Maintenance Free

Dimensions

Cord Length 1.5 m
W x H x D 100 x 145 x 305 mm
Weight 6 kg
Height 14.5 cm
Width 10 cm
Depth 30.5 cm

Additional Features

AVR (Automatic Voltage Regulation), Quick Charge, Fuse Protection, Noise Filter, Sound beeping, Small, light weighted, compact and maintenance free, Adequate backup even for high end PC
Insulation Yes

Input Features

Input Plug Type 3 pin, Type D - IS 1293
Input Frequency 50Hz
Input Voltage 230 V
Phase Single Phase
Other Input Features Input Voltage Range: 145 to 290 VAC +/- 5 VAC

Power Features

Power Rating (VA) 800 va
Minimum Output Power (V) 230 V
Maximum Input Power (V) 280 V
Maximum Power Handling Capacity (W) 480 W
Minimum Input Power (V) 145 V
Nominal Input Power (V) 230
Maximum Frequency (Hz) 53 Hz
Minimum Frequency (Hz) 50 Hz
Other Power Features Automatic Voltage Regulation, Input Voltage Range: 145VAC to 280VAC, Input Frequency Range: 47 to 53 Hz, Output Voltage: 230VAC, Single Phase, Output Frequency: 50Hz ± 1%
Maximum Output Power (V) 230 V

Output Features

Output Power Wattage 480 W
Efficiency >90 %
Output Power Factor 0.6
Transfer Time 0 ms
Output Voltage 230 V
Outlet Plug Type 3 pin (Type C/D/M - IS 1293)
Number of Outlet Plugs 3
Surge Protection Yes
Other Output Features Automatic stabilized output voltage
Output Waveform Stepped Approximation to Sine Wave
Output Frequency 50Hz ± 1%
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
