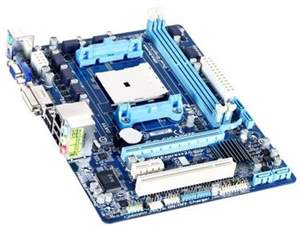

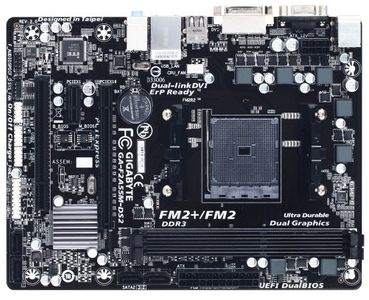

Gigabyte GA-F2A55M-DS2 Motherboard

Gigabyte GA-F2A55M-DS2 Motherboard Share on

₹10434.00

Latest Motherboards

Intel Motherboards - Intel DQ87PG Motherboard
Intel Motherboards

Intel DQ87PG Motherboard

₹8000.00
Asus Motherboards - ASUS H110I-PLUS Motherboard
Asus Motherboards

ASUS H110I-PLUS Motherboard

₹13999.00
MSI Motherboards - MSI Z370 Tomahawk DDR4 Motherboard
MSI Motherboards

MSI Z370 Tomahawk DDR4 Motherboard

₹21000.00
Zebion Motherboards - Zebion G-41 DDR3 Motherboard
Zebion Motherboards

Zebion G-41 DDR3 Motherboard

₹2300.00
Zebronics Motherboards - Zebronics G41 D3 Motherboard
Zebronics Motherboards

Zebronics G41 D3 Motherboard

₹2696.00
Zebronics Motherboards - Zebronics ZEB55 Motherboard
Zebronics Motherboards

Zebronics ZEB55 Motherboard

₹3599.00
Zebronics Motherboards - Zebronics ZEB-Z31 Motherboard
Zebronics Motherboards

Zebronics ZEB-Z31 Motherboard

₹2595.00
Intel Motherboards - Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard
Intel Motherboards

Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard

₹45000.00
Intel Motherboards - Intel Desktop Board DZ77GAL-70K Motherboard
Intel Motherboards

Intel Desktop Board DZ77GAL-70K Motherboard

₹17500.00
Intel Motherboards - Intel Dg41Rq Motherboad
Intel Motherboards

Intel Dg41Rq Motherboad

₹7786.00

Gigabyte GA-F2A55M-DS2 Motherboard Specifications

In The Box

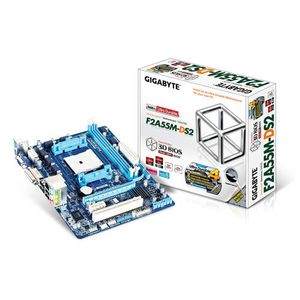

Sales Package Motherboard, Quick Guide, Rear I/O Panel Shield and SATA Cable

General

Brand Gigabyte
Model ID GA-F2A55M-DS2

Essentials

Form Factor Micro-ATX
Socket Type FM2
Compatible Processors A6-5400K, A8-5500, AMD Athlon Series Processors: Athlon X4 750K, Athlon X4 730, A10-5700, A8-5600K, AMD A Series Processors: A10-5800K, A4-5300, Athlon X4 740
Chipset AMD A55
Chipset Manufacturer AMD

Connectivity

Ethernet Controller Realtek GbE
Ethernet Features 10/100/1000 Mbit

Memory

Number of Memory Slots 2 Slots
Memory Configuration 64 DDR3 Dual Channel DIMM
Memory Frequency 1066 MHz, 1600 MHz, 1333 MHz, 1866 MHz

Storage

SATA 3 Gb/s AMD A55
RAID Controller AMD A55
RAID Configurations 0, 1, 10, JBOD

Audio

Audio Codec Realtek ALC887
Audio Channels 7.1
Audio Features High Definition Audio, Support for S/PDIF Out

Graphics

External Graphics Card Support Yes
Multi GPU Support Yes

Expansion Slots

PCI Slots 1
PCIe x1 Slots, Generation 1, 2.0
PCIe x16 Slots, Generation 1, 2.0

Internal I/o Headers

ATX Power Connectors 1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
SATA 3 Gb/s Headers 4
USB 2.0 Headers 2
Fan Headers 1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers 2
Other Connectors 1 x Serial Port Header, 1 x Clear CMOS Jumper, 1 x S/PDIF Out Header

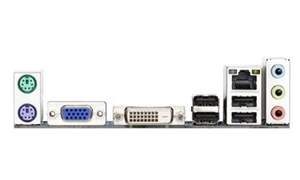

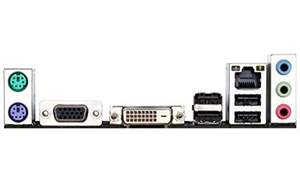

Back Panel Ports

USB 2.0 Ports, Controller 4
VGA/D Sub Ports 1
DVI Ports 1
Audio I/O Channels 3
RJ-45 Ethernet Jacks 1
PS/2 2

General Features

Hardware Monitoring System Voltage Detection, APU/System Temperature Detection, APU/System Fan Speed Detection, APU Overheating Warning, APU/System Fan Fail Warning, APU/System Fan Speed Control
OS Support Windows: XP and Above
Bundled Software Norton Internet Security (OEM Version)
BIOS 2 x 32 Mbit Flash, Use of Licensed AMI EFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Features High Temperature Protection, ErP Lot 6 support, Enhanced AMD Radeon HD 7000 Series Graphics (DX11) Integrated with APU, iTE I/O Controller Chip, Dual-link DVI for High Resolution Displays of Upto 2560 x 1600 Pixels, Humidity Protection, Electrostatic Protection, Short Circuit Protection, Power Failu...View More High Temperature Protection, ErP Lot 6 support, Enhanced AMD Radeon HD 7000 Series Graphic
Advanced Technologies Gigabyte 3D BIOS Technology with Dual UEFI BIOS Design, Gigabyte Ultra Durable 4 Classic Technology, DirectX11, AMD Eyefinity Technology, AMD Dual Graphics Technology: Unrivalled Upgradability
Advanced Features Support for @BIOS Utility, Support for Q-Flash, Support for Xpress Install, Support for EasyTune, Support for Smart Recovery 2, Support for Auto Green, Support for ON/OFF Charge, Support for 3TB+ Unlock, Support for Q-Share, Support for AMD Memory Profile (AMP)/Extreme Memory Profile (XMP) Memory Mo...View More Support for @BIOS Utility, Support for Q-Flash, Support for Xpress Install, Support for Ea

Dimensions

Dimensions 225 x 174 mm
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
