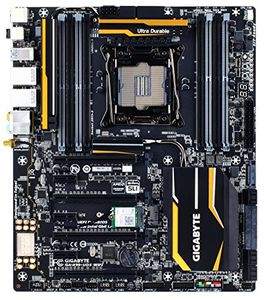

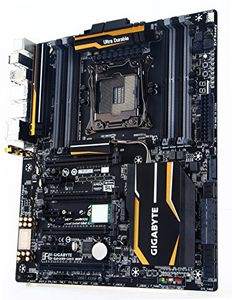

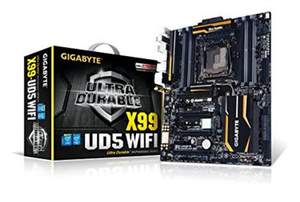

Gigabyte GA-X99-UD5 MotherBoard

Name: Gigabyte GA-X99-UD5 MotherBoard
Brand: Gigabyte Motherboards
Availability: InStock
Rating: 4.5 (600 reviews)

Gigabyte GA-X99-UD5 MotherBoard Share on

Gigabyte Motherboards

₹74735.00

₹74735.00

Go to store

Latest Motherboards

Intel Motherboards

MSI Z370 Tomahawk DDR4 Motherboard

₹21000.00

Zebion Motherboards

Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard

₹45000.00

Intel Motherboards

Intel Desktop Board DZ77GAL-70K Motherboard

₹17500.00

Intel Motherboards

Gigabyte GA-X99-UD5 MotherBoard Specifications

In The Box

Sales Package

Motherboard, Manuals

General

Brand	Gigabyte
Model ID	GA-X99-UD5 Wi-Fi

Essentials

Form Factor	EATX
Socket Type	LGA 2011
Compatible Processors	Intel Core i7 Processor
Chipset	Intel X99 Express
Chipset Manufacturer	Intel

Connectivity

Ethernet Controller	2 x Intel GbE
Ethernet Features	10/100/1000 Mbit
Wireless and Bluetooth	Wi-Fi 802.11 a/b/g/n/ac, Supporting 2.4/5 GHz Dual Band, Support for 11ac Wireless Standard and upto 867 Mbps Data Rate and Bluetooth 4.0, 3.0 + HS, 2.1 + EDR

Memory

Number of Memory Slots	8 Slots
Memory Configuration	64 DDR4 Quad Channel DIMM
Memory Frequency	2666 (O.C) MHz, 2400 (O.C) MHz, 2800 (O.C) MHz, 2133 MHz
ECC Support	Non-ECC

Storage

SATA 6 Gb/s	Intel X99 Express
RAID Controller	Intel X99 Express
RAID Configurations	0, 1, 5, 10

Audio

Audio Codec	Realtek ALC1150
Audio Channels	7.1
Audio Features	High Definition Audio, Support for S/PDIF Out

Graphics

Multi GPU Support

Support for 4-Way, 3-Way, 2-Way AMD CrossFire, NVIDIA SLI Technology

Expansion Slots

PCIe x1 Slots, Generation	2.0, 3
PCIe x16 Slots, Generation	3.0, 4

Internal I/o Headers

ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
SATA 6 Gb/s Headers	10
USB 2.0 Headers	2
USB 3.0 Headers	2
Fan Headers	1 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x PCIe Power Connector, 1 x M.2 Socket 3 Connector, 1 x Water Cooling Fan Header (CPU_OPT), 1 x Clear CMOS Jumper, 1 x SATA Express Connector, 1 x I/O Shield Audio LED Power Connector, 1 x Front Panel Audio Header, 1 x Reset Button, 1 x Clear CMOS Button, 1 x Thunderbolt Add-in Card Connector, 1 x...View More 1 x PCIe Power Connector, 1 x M.2 Socket 3 Connector, 1 x Water Cooling Fan Header (CPU_OP

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	8
Audio I/O Channels	5
RJ-45 Ethernet Jacks	2
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
PS/2	1
Other Ports	1 x CPU Overclocking Button, 1 x Fast Boot Button, 1 x Clear CMOS Button, 2 x SMA Antenna Connectors (2T2R)

General Features

OS Support	8.1, Window: 7, 8
Bundled Software	Norton Internet Security (OEM Version), Intel Smart Response Technology, cFosSpeed
Hardware Monitoring	System Voltage Detection, CPU/System/Chipset Temperature Detection, CPU/CPU OPT/System Fan Speed Detection, CPU/System/Chipset Overheating Warning, CPU/CPU OPT/System Fan Fail Warning, CPU/CPU OPT/System Fan Speed Control
BIOS	2 x 128 Mbit Flash, Use of Licensed AMI UEFI BIOS, Support for Dual BIOS, Support for Q-Flash Plus, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Features	EZ Setup, System Information Viewer, V-Tuner, Ambient LED, Support for Smart Switch, Fast Boot, Support for APP Center - at BIOS, Smart TimeLock, Cloud Station, USB Blocker, EasyTune, I/O Controller: iTE I/O Controller Chip, Support for Xpress Install, ON/OFF Charge, Smart Recovery 2, Support for Q-...View More EZ Setup, System Information Viewer, V-Tuner, Ambient LED, Support for Smart Switch, Fast
Advanced Features	L3 Cache Varies with CPU, Support for Extreme Memory Profile (XMP) Memory Modules, Support for RDIMM 1R x 8 Memory Modules (Operate in Non-ECC Mode)

Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
