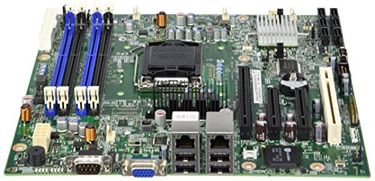

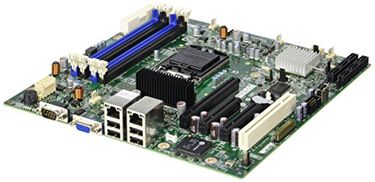

Intel S1200BTSR Server Board micro ATX Motherboard

Intel S1200BTSR Server Board micro ATX Motherboard Share on

N/A

Intel S1200BTSR Server Board Micro ATX Motherboard Specifications

In The Box

Sales Package 1 x Motherboard, 1- I/O Plate (backplate).

General

Brand Intel
Model ID S1200BTS

Essentials

Form Factor Micro-ATX
Socket Type LGA 1155
Compatible Processors Intel Xeon E3-1200 Series
Chipset Intel C202, North Bridge
Chipset Manufacturer Intel

Connectivity

Ethernet Controller 1 x Intel 82574L 1 x Intel 82578DM
Ethernet Features 1 x Intel 82574L (10/100/1000Mbps), 1 x Intel 82578DM (10/100/1000Mbps)

Memory

Number of Memory Slots 4 Slots
Memory Configuration 32 GB DDR3 DDR3 1333/1066
Memory Frequency 1333 MHz, 1066 MHz
ECC Support ECC Registered

Storage

SATA 3 Gb/s 6
RAID Controller RAID 0/1/5/10
RAID Configurations 0/1/5/10

Graphics

Integrated Graphics card Dedicated 64 MB DDR2 SDRAM

Expansion Slots

PCIe x8 Slots, Generation 2
PCIe x1 Slots, Generation 1
PCIe x16 Slots, Generation 1

Internal I/o Headers

SATA 3 Gb/s Headers 4

Back Panel Ports

USB 2.0 Ports, Controller 4
VGA/D Sub Ports 1
RJ-45 Ethernet Jacks 2

Dimensions

Dimensions 9.6 x 9.6 mm
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
