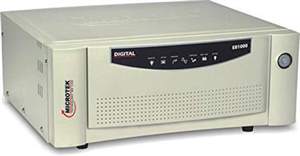

Microtek UPS-EB 1000VA Inverter

Microtek UPS-EB 1000VA Inverter Share on

₹5510.00
amazon ₹5510.00 Go to store

Microtek UPS-EB 1000VA Inverter Specifications

Key Feature

Brand Microtek

Warranty Details

Duration 2 Years
Warranty Available Manufacturer Warranty
Warranty Service Type , ,

General Details

Inverter Type Modified Sine Wave Inverter
Volt Ampere Rating Above 1000VA
Battery Type 12 V BATTERY
Frequency (Mains Mode) Same as Input (45-55 Hz.)
Output Voltage (UPS Mode) 200V-230V 10%
Frequency (UPS Mode) 50 Hz 0.1 Hz
Protection Battery Deep Discharge, Reverse Polarity, DC Overvoltage
Voltage (Mains Mode) 100V~300V (Wide input voltage range), 180V~260V (Normal input voltage range)

Under Voltage & Under Voltage Restoration

Regulated UPS mode 180 +/- 5 V
Unregulated UPS mode 100 +/- 10 V & 115 +/- 10 V

Other Features

Visual Indicators Mains On, UPS On, Switch Status, Smart Charge, Overload/ Short Circuit Trip, Charger Fuse Blown, Battery Low Trip and No Load Shutdown
Technology Micro Controller Based Design
Battery Charging Battery charging commences even at as low as 120 Volt Mains voltage
Switching from Mains to UPS & from UPS to Mains Automatic
Output Waveform on UPS Mode TPZi Waveform (TRAPE ZOIDAL WAVEFORM)
Battery Charging Current Constant Charging Approx 10% of The Rated Battery Current in AH
Audio Alarms Mains fail, Charger fuse blown, battery low and no load shutdown
Charger Power Factor Controlled Boost Technology

Alarms

Charging Fuse Blown Beeps Continuously for 10 seconds
Low Battery Trip Beeps Continuously for 10 seconds
Overload Beeps Continuously for 10 seconds
Low Battery (Pre Alarm) Beeps every 10 seconds
Mains to UPS Beeps every 2 seconds for 5 times
No Load Shut Down Beeps Continuously for 10 seconds
Short Circuit Beeps Continuously for 10 seconds

Led Display

Battery Charged GREEN LED STUDY
Mains On Red
Battery Low Red
No Load Shut Down Red
Overload Red
Low Battery (Pre Alarm) UPS ON+LOW BATTERY LED BLINKS
Short Circuit OVERLOAD BLINKING
Smart Charge Red (Along with Mains On LED
Switch ON White

Power & Operating Requirements

Humidity 0-95 % RH non -condensing
Operating Temperature 0-45 DegreeC (32-113 DegreeF)
Storage Temperature 0-45 DegreeC (32-113 DegreeF)

What is in the Box

Items in the Box Warranty Card
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
