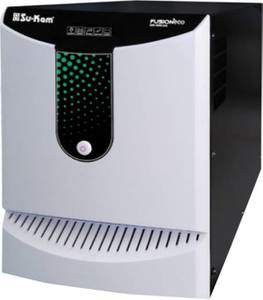

Su-Kam Fusion Eco 3500 VA Inverter

Su-Kam Fusion Eco 3500 VA Inverter Share on

₹17174.00

Latest Inverters & Batteries

Luminous Inverters & Batteries - Luminous Eco Watt Neo 1250 Square Wave Inverter
Luminous Inverters & Batteries

Luminous Eco Watt Neo 1250 Square Wave Inverter

₹7440.00
Luminous Inverters & Batteries - Luminous Power X 2250 Pure Sine Wave Inverter
Luminous Inverters & Batteries

Luminous Power X 2250 Pure Sine Wave Inverter

₹12385.00
Luminous Inverters & Batteries - Luminous Cruze 2KVA/24V Pure Sine Wave Inverter
Luminous Inverters & Batteries

Luminous Cruze 2KVA/24V Pure Sine Wave Inverter

₹16000.00
Smarten Inverters & Batteries - Smarten Superb 2500 Pure Sine Wave Inverter
Smarten Inverters & Batteries

Smarten Superb 2500 Pure Sine Wave Inverter

₹14399.00
Smarten Inverters & Batteries - Smarten Nova 1250 Pure Sine Wave Inverter
Smarten Inverters & Batteries

Smarten Nova 1250 Pure Sine Wave Inverter

₹5499.00
Smarten Inverters & Batteries - Smarten Superb 1100 Pure Sine Wave Inverter
Smarten Inverters & Batteries

Smarten Superb 1100 Pure Sine Wave Inverter

₹12000.00
Smarten Inverters & Batteries - Smarten Saver 1000 Pure Sine Wave Inverter
Smarten Inverters & Batteries

Smarten Saver 1000 Pure Sine Wave Inverter

₹8990.00
Smarten Inverters & Batteries - Smarten Saver 3050 Pure Sine Wave Inverter
Smarten Inverters & Batteries

Smarten Saver 3050 Pure Sine Wave Inverter

₹17000.00
Smarten Inverters & Batteries - Smarten Nova Plus 850 Pure Sine Wave Inverter
Smarten Inverters & Batteries

Smarten Nova Plus 850 Pure Sine Wave Inverter

₹5999.00
Smarten Inverters & Batteries - Smarten Nova Plus 1050 Pure Sine Wave Inverter
Smarten Inverters & Batteries

Smarten Nova Plus 1050 Pure Sine Wave Inverter

₹6999.00

Su-Kam Fusion Eco 3500 VA Inverter Specifications

Convenience Features

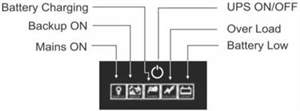

Display Indicator Functions Mains On, Backup Mode, Backfeed
Display Type LED
Protection Against Over Current, PV Reverse Polarity, High Temperature
Cooling System Natural Air Cooling
Other Convenience Features Continuous Battery Charging Even When Voltage Drops as Low as 90 V
Audible Indicator Functions Over Load
USB Charging Port No

In The Box

1 Inverter, Warranty Card

General

Brand Su-Kam
Mode Type UPS Mode/ Wide-UPS Mode (To Enhance Operating Input Voltage Range)
Battery Included No
Type Pure Sine Wave Inverter
Model Name Fusion Eco Pure Sine Wave UPS
Model Number 3500/48V
Solar Power Compatible No

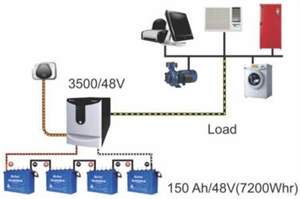

Load Options 1.5 Ton AC (3 to 5) or 1 Air Cooler, 2 TV, 1 Refrigerator 360 Litre or 2 TV, 4 Fans, 2 Refrigerator 360 Litres
Material Cabinet: Metal
Technology Used 6 Stage Charging for Ensuring Longer Battery Life, Digitial Signal Processor based MOSFET
Fixture Type Table Top
Switch Type Dual Inline Package (DIP) Switch

Battery Features

Number of Batteries 4
Battery Boost Voltage 14.4 +/- 0.2 V
Battery Type Sealed Maintenance Free, Lead Acid, Tubular
Battery Voltage 13.6 +/- 0.2 V
Battery Charging Current 16 +/- 1.5A, 12 +/- 1.5 A (Depending Upon Selected Setting by User)

Additional Features

Corrosion Resistant Yes

Input Features

Low Cut Recovery Input Voltage AC 90 +/- 10 V
Input Frequency 45 - 65 +/- 0.5
Input Voltage W UPS - AC 85 V to AC 290 V|UPS - AC 185 V to AC 265 V
Low Cut Input Voltage AC 85 +/- 10 V
High Cut Input Voltage AC 290 +/- 10 V
High Cut Recovery Input Voltage AC 275 +/- 10 V

Dimensions

Weight 31.7 kg
Height 35.5 cm
Width 39.5 cm
Depth 24.5 cm

Output Features

Efficiency 87% %
Output Voltage 190 - 230 V
Output Frequency 50 +/- 0.1
Overload Above 100%
Change Over Time 12 ms
Other Output Features Crest Factor: 3:1
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
