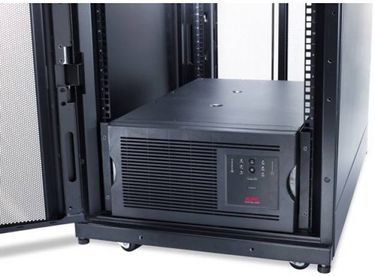

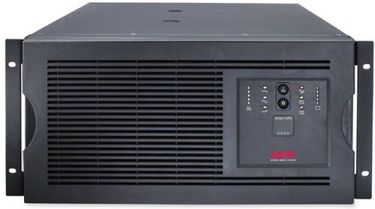

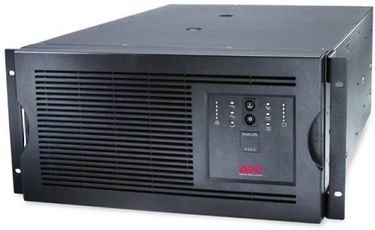

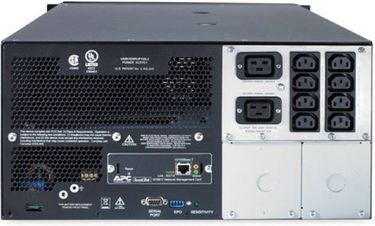

APC SUA5000RMT5U Smart 5000VA/4000W UPS Specifications
General
| Cold Start |
Yes |
| Brand |
APC |
| Overload Capacity |
110 |
| Type |
Line-interactive |
| Model Number |
SUA5000RMI5U |
| Overload Protection |
Yes |
| Model Name |
SUA5000RMI5U |
| Certification |
C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE |
| Technology Used |
Line Interactive |
| Form Factor |
Tower Model, Rack-mount Model |
| Color |
Black |
Environmental Features
| Maximum Operating Altitude |
3000 m |
| Maximum Operating Temperature |
40 degree C |
| Operating Humidity |
0 - 95 % % |
| Noise Level |
53.0 dBA |
| Maximum Storage Altitude |
15000 m |
| Minimum Operating Temperature |
30 degree C |
| Storage Temperature |
-15 - 45 °C degree C |
| Storage Humidity |
0 - 95 % % |
Convenience Features
| Low Battery Indicator |
Yes |
| Display Indicator Functions |
Main Fail, Overload, Battery Condition, Load Indicator, Battery Repalcement |
| Serial Port |
Yes |
| Display Type |
LED Dispaly |
| Audible Indicator Functions |
Mains Failure, Overload Indication |
| Digital Display |
No |
| Emergency Power Off |
No |
Dimensions
| Cord Length |
1.5 m |
| Weight |
98 kg |
| Height |
22 cm |
| Width |
48.3 cm |
| Depth |
66.0 cm |
Battery Features
| Recharge Time |
3 HOURS |
| Replacement Battery |
Yes |
| Battery Capacity |
18 |
| Half Load Runtime |
27 min |
| Battery Voltage |
48 V V |
| Number of Batteries |
4 |
| Full Load Runtime |
9 min |
| Hot-swappable Battery |
Yes |
| Replacement Battery Type |
RBC 55 |
| Battery Type |
VRLA |
Input Features
| Input Plug Type |
Hard Wire 3-wire |
| Input Frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
| Input Voltage |
230 V |
| Phase |
1 Phase |
Output Features
| Output Power Wattage |
4000 W |
| Efficiency |
96.0 % % |
| Output Power Factor |
0.8 |
| Transfer Time |
2 ms |
| Output Voltage |
230 V |
| Outlet Plug Type |
(4) IEC Jumpers (Battery Backup) (2) IEC 320 C19 (Battery Backup) (8) IEC 320 C13 (Battery Backup) |
| Number of Outlet Plugs |
8 |
| Other Output Features |
Sine Wave |
| Output Waveform |
Sine wave |
| Output Frequency |
47 - 53 Hz for 50 Hz nominal |
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
