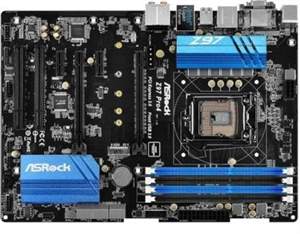

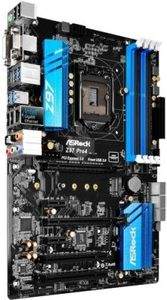

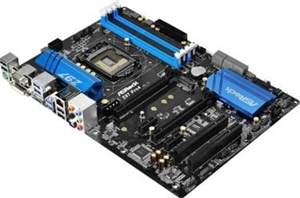

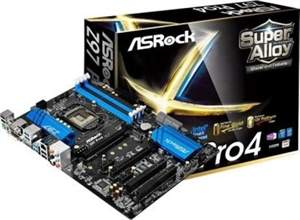

ASRock Z97 Pro4 Motherboard

Name: ASRock Z97 Pro4 Motherboard
Brand: ASRock Motherboards
Availability: InStock
Rating: 4.5 (600 reviews)

ASRock Z97 Pro4 Motherboard Share on

ASRock Motherboards

₹19360.00

Latest Motherboards

Intel Motherboards

MSI Z370 Tomahawk DDR4 Motherboard

₹21000.00

Zebion Motherboards

Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard

₹45000.00

Intel Motherboards

Intel Desktop Board DZ77GAL-70K Motherboard

₹17500.00

Intel Motherboards

ASRock Z97 Pro4 Motherboard Specifications

In The Box

Sales Package

Motherboard, Manuals

General

Brand	ASRock
Model ID	Z97 Pro4

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel 5th Generation Core i5 Processor, Intel 4th Generation Xeon Processor, Intel 5th Generation Core i7 Processor, Intel Pentium Processor, Intel Celeron Processor, Intel New 4th Generation Xeon Processor, Intel 5th Generation Core i3 Processor, Intel New 4th Generation Core i7 Processor, Intel Ne...View More Intel 5th Generation Core i5 Processor, Intel 4th Generation Xeon Processor, Intel 5th Gen
Chipset	Intel Z97
Chipset Manufacturer	Intel

Connectivity

Ethernet Controller	Intel I218 V
Ethernet Features	Gigabit LAN 10/100/1000 Mbps, Supports Intel Remote Wake Technology, Supports Wake-On-LAN, Supports Lightning/ESD Protection (ASRock Full Spike Protection), Supports Energy Efficient Ethernet 802.3az, Supports PXE

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1600 MHz, 3100+ (OC) MHz, 1066 MHz, 1333 MHz, 2800 (OC) MHz, 2133(OC) MHz, 1866(OC) MHz, 2400(OC) MHz, 2933 (OC) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

RAID Configurations

0, 1, 5, 10

Audio

Audio Codec	Realtek ALC892
Audio Channels	7.1
Audio Features	HD Audio with Content Protection, Premium Blu-ray Audio Support, Supports Surge Protection (ASRock Full Spike Protection), Nichicon Fine Gold Series Audio Caps

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Supports AMD Quad CrossFireX and CrossFireX

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2, 2.0
PCIe x16 Slots, Generation	3.0 and 1, 1, 2.0

Internal I/o Headers

ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
USB 2.0 Headers	2
USB 3.0 Headers	1
Fan Headers	2 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x SATA Express 10 Gb/s Connector (Shared with SATA3_4, 1 x M.2_SSD (NGFF) Socket 3, SATA3_5 and M.2 Socket), 1 x Chassis Intrusion Header, Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin), CPU Fan Connectors (1 x 4-pin, 1 x 3-pin), 1 x PCIe Power Connector, 1 x Thunderbolt AIC Connector, Supports M.2...View More 1 x SATA Express 10 Gb/s Connector (Shared with SATA3_4, 1 x M.2_SSD (NGFF) Socket 3, SATA

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	4
DVI Ports	1
Audio I/O Channels	5
HDMI Ports	1
RJ-45 Ethernet Jacks	1
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
PS/2	1
Other Ports	HD Audio Jacks: Rear Speaker, Central, Bass, Line in, Front Speaker, Microphone

General Features

Overclocking	Supports ASRock BCLK Full-range Overclocking
Hardware Monitoring	CPU/Chassis Temperature Sensing, CPU/Chassis/Power Fan Tachometer, CPU/Chassis Quiet Fan (Auto Adjust Chassis Fan Speed by CPU Temperature), CPU/Chassis Fan Multi-speed Control, Case Open Detection, Voltage Monitoring: +12 V, +5 V, +3.3 V, CPU Vcore
OS Support	8, 64-bit), Microsoft Windows: 7, 8.1 (32-bit
Support CDs	Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 Days Trial), Orbweb.ME Professional (Windows 8.1)
BIOS	64 Mb AMI UEFI Legal BIOS with Multilingual GUI Support, ACPI 1.1 Compliant Wake Up Events, SMBIOS 2.3.1 Support, CPU, DRAM, PCH 1.05 V, PCH 1.5 V Multi-adjustment, UEFI: ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock UEFI Guide, ASRock Instant Flash, ASRock Internet Flash, ASRock Crashles...View More 64 Mb AMI UEFI Legal BIOS with Multilingual GUI Support, ACPI 1.1 Compliant Wake Up Events
Features	6 Power Phase Design, MVC (S3D) and MPEG-2 Full HW Encode1, Intel Insider, DirectX 11.1, DVI-D, Pixel Shader 5.0, Supports Auto Lip Sync, Three Graphics Output Options: D-Sub, ASRock XFast RAM, ASRock Cloud, ASRock APP Shop, ASRock APP Charger, High Density Glass Fabric PCB, xvYCC and HBR (High Bit ...View More 6 Power Phase Design, MVC (S3D) and MPEG-2 Full HW Encode1, Intel Insider, DirectX 11.1, D
Advanced Technologies	Supports Intel Turbo Boost 2.0 Technology, Supports Intel K-Series Unlocked CPUs, Intel Rapid Storage Technology 13 and Intel Smart Response Technology, NCQ, AHCI and Hot Plug
Advanced Features	Digi Power Design, Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2
