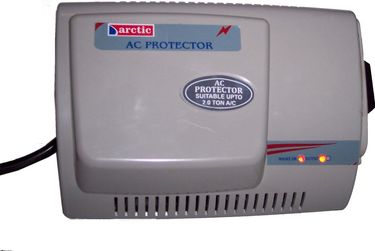

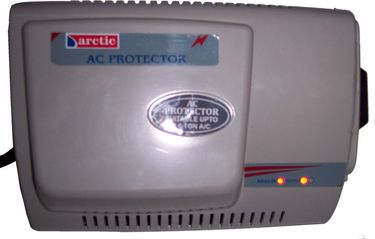

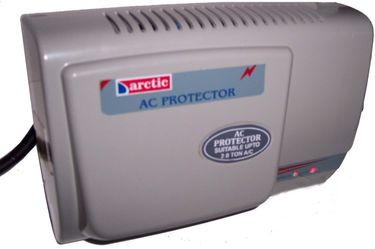

Arctic IAVS EPR ACP20 Voltage Stabilizer Specifications
General
| Brand |
Arctic |
| Type |
Voltage Guard |
| Model ID |
iAVS EPR ACP20 |
| Color |
Grey |
| Used For |
Air Conditioner |
| Phase |
1 |
| Cooling |
Air Cooling |
| Generator Compatibility |
Yes |
Operational Conditions
| Minimum Operating Temperature (° C) + Maximum Operating Temperature (° C) |
15 - 45 Degree C |
| Minimum Humidity (%) + Maximum Humidity (%) |
30 - 95 % |
Performance Features
| Output Voltage Correction |
Yes |
| Other Performance Features |
Protect your Air conditioners with this electronic voltage protector for Air Conditioner's upto 2.0 tonnes. It is an automatic voltage-regulating device that helps you protect your appliances from problems like under-voltage, over-voltage and power spikes. It has copper wound transformers and coil c...View More
Protect your Air conditioners with this electronic voltage protector for Air Conditioner's |
| Circuit Breaker |
No |
| Manual Reset |
No |
| Automatic Reset |
Yes |
| Spike Suppressor |
Yes |
| Audio Alarm |
No |
| Trip Delay |
Yes |
Body
| Mount Type |
Wall and Floor |
| Material |
Plastic, Copper, Steel |
| Display Type |
LED |
| Indicator Type |
LED Bulb |
| Surge Indicator |
No |
| Other Body Features |
ABS Shock Proof Body |
| Master Switch |
No |
Power Features
| Minimum Input Power (V) |
185 |
| Maximum Spike Current (A) |
2 A |
| Nominal Input Power (V) |
230 |
| Maximum Input Power (V) |
260 |
| Power Rating (VA) |
5000 va |
| Other Power Features |
To be used with Air Conditioners below 2.0 tonnes |
| Minimum Output Power (V) |
185 V |
| Maximum Frequency (Hz) |
60 Hz |
| Maximum Output Power (V) |
255 V |
| Maximum Power Handling Capacity (W) |
500 W |
| Accuracy (%) |
2.5 % |
| Minimum Frequency (Hz) |
50 Hz |
| Energy Rating (J) |
680 J |
Dimensions
| W x H x D |
300 x 160 x 75 mm |
| Weight |
1 kg |
Safety Features
| Under Volt Protection |
Yes |
| Surge Protection |
No |
| Over Volt Protection |
Yes |
| Other Safety Features |
Yes |
| Overload Protection |
No |
| Phase Reversal Protection |
No |
Additional Features
| Other Features |
Vaccum Impreganation |
| Insulation |
Yes |
