Asus B250 Mining Expert DDR4 Motherboard Specifications
In The Box
| Sales Package |
ASUS B250 MINING EXPERT MOTHERBOARD, User's manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 1 x Supporting DVD |
General
| Brand |
Asus |
| Model ID |
B250 MINING EXPERT Intel LGA-1151 DDR4 for Cryptocurrency Mining with 19 PCIe Slots |
Essentials
| Form Factor |
ATX |
| Socket Type |
LGA1151 |
| Compatible Processors |
Intel 6th Generation, Intel 7th Generation |
| Chipset |
Intel B250, B250 |
| Chipset Manufacturer |
Intel |
| FSB |
2400 |
Connectivity
| Ethernet Controller |
Intel I219V |
| Ethernet Features |
Gigabit LAN |
| Wireless and Bluetooth |
0 |
| Ethernet Card |
1 |
Memory
| Number of Memory Slots |
2 Slots |
| Memory Configuration |
32 DDR4 Dual UDIMM |
| Memory Frequency |
2400 |
| ECC Support |
Non-ECC |
| Buffered Memory |
Yes |
Storage
| PATA Ultra DMA |
0 |
| SATA 6 Gb/s |
4, B250 |
| RAID Controller |
B250 |
Audio
| Audio Codec |
Realtek ALC887 |
| Audio Channels |
8 |
Graphics
| External Graphics Card Support |
Yes |
| Integrated Graphics card |
N/A |
Expansion Slots
| PCIe x8 Slots, Generation |
0 |
| PCI Slots |
19 |
| PCIe x2 Slots, Generation |
0 |
| PCIe x1 Slots, Generation |
18 |
| PCIe x4 Slots, Generation |
0 |
| Mini PCIe Slots |
18 |
| PCIe x16 Slots, Generation |
1 |
Internal I/o Headers

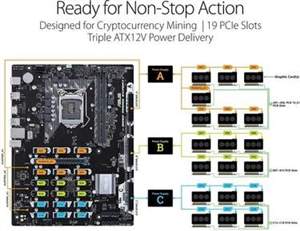

| ATX Power Connectors |
1 (4 Pin EATX), 3 (24 Pin ATX Power Connectors) |
| SATA 6 Gb/s Headers |
4 |
| USB 2.0 Headers |
2 |
| USB 3.0 Headers |
1 |
| Fan Headers |
2 (Processor Fan Headers), 4 (System Fan Headers) |
| VGA/Dsub Connectors |
0 |
| Front Panel Headers |
1 |
| IEEE 1394a Headers |
0 |

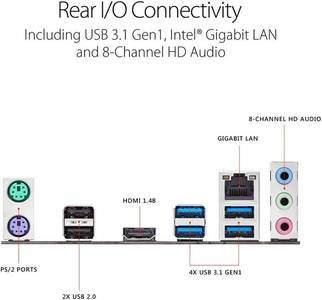

Back Panel Ports
| USB 2.0 Ports, Controller |
10 |
| USB 3.0 Ports, Controller |
6 |
| VGA/D Sub Ports |
0 |
| DVI Ports |
0 |
| eSATA Ports, Controller |
0 |
| IEEE 1394a Ports |
0 |
| HDMI Ports |
1 |
| Audio I/O Channels |
3 |
| RJ-45 Ethernet Jacks |
1 |
| Optical S/PDIF Ports and S/PDIF Out ports |
0 (Optical S/PDIF Ports) |
| PS/2 |
2 |
General Features
| OS Support |
Windows 10 64-bit, Windows 7 64-bit |
| BIOS |
UEFI AMI BIOS |
| Support CDs |
Supporting DVD |
| Advanced Features |
Crypto Mining, PCIe Slot State Detection |
Dimensions
| Dimensions |
26.5 x 5.5 x 36 |
| Weight |
995 |
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
