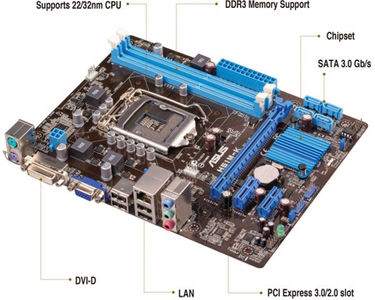

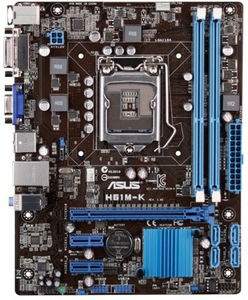

Asus H61M-K Motherboard

Name: Asus H61M-K Motherboard
Brand: Asus Motherboards
Availability: InStock
Rating: 4.5 (600 reviews)

Asus H61M-K Motherboard Share on

Asus Motherboards

₹5630.00

Latest Motherboards

Intel Motherboards

MSI Z370 Tomahawk DDR4 Motherboard

₹21000.00

Zebion Motherboards

Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard

₹45000.00

Intel Motherboards

Intel Desktop Board DZ77GAL-70K Motherboard

₹17500.00

Intel Motherboards

Asus H61M-K Motherboard Specifications

In The Box

Sales Package

1 x Motherboard, 1 x Driver CD, User Manual

General

Brand	Asus
Model ID	H61M-K

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	Intel processor
Chipset	Intel H61 (B3)
Chipset Manufacturer	Intel H61(B3)

Connectivity

Ethernet Controller	Realtek 8111F
Ethernet Features	1 x Gigabit LAN Controller

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 GB DDR3 16 DDR3 Dual Channel DIMM DIMM
Memory Frequency	1066 MHz, 2133 (O.C) MHz, 1600 MHz, 1333 MHz, 1866 (O.C.) MHz, 2000 (O.C.) MHz, 2200 (O.C.) MHz MHz
ECC Support	Non-ECC
Buffered Memory	No

Storage

SATA 3 Gb/s

Intel H61 (B3)

Audio

Audio Codec	Realtek ALC887
Audio Channels	8
Audio Features	High Definition Audio CODEC

Graphics

External Graphics Card Support	Yes
Integrated Graphics card	Yes

Expansion Slots

PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	1

Internal I/o Headers

ATX Power Connectors	1 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)
SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	4
USB 2.0 Headers	2
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
VGA/Dsub Connectors	1
Front Panel Headers	1
Other Connectors	1 x Front Panel Audio Connector (AAFP), 1 x CPU Fan Connector (4-pin), 1 x Clear CMOS Jumper, 1 x 4-pin ATX 12 V Power Connector, 1 x Internal Speaker Connector, 1 x Chassis Fan Connector (4-pin), 1 x 24-pin EATX Power Connector

Back Panel Ports

USB 2.0 Ports, Controller	4
VGA/D Sub Ports	1
DVI Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	2

General Features

OS Support	Windows XP, Windows 7, Windows 10
Support CDs	Drivers, Asus Utilities, Asus Update, Anti-virus Software (OEM Version)
BIOS	64 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM 2.0, SMBIOS v2.7, ACPI v2.0a, SLP3.0, EUP-ready
Features	Network iControl, Asus Quiet Thermal Solution: Asus Fan Xpert, Special Features - Asus Exclusive Features: AI Suite II, Ai Charger, Asus MyLogo 2, Asus EZ Flash 2, Manageability: WOL, PME Wake Up, PXE, Supports DVI with Maximum Resolution 1920 x 1200 at 60 Hz, Integrated Graphics Processor - Multi V...View More Network iControl, Asus Quiet Thermal Solution: Asus Fan Xpert, Special Features - Asus Exc
Advanced Technologies	Supports Intel Turbo Boost Technology 2.0
Advanced Features	Supports Intel 22 nm CPU, Supports Intel 32 nm CPU, Intel Turbo Boost Technology 2.0 Support Depends on the CPU Types, Supports CPU up to 77 W

Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
