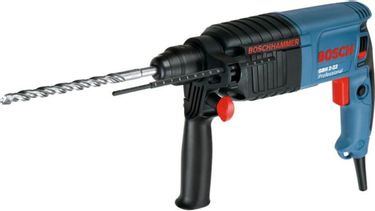

Bosch GBH2 22 SDS Plus Drill Specifications
In The Box
|
Drilling Machine, Handle, User Manual |
General
| Brand |
Bosch |
| Color |
Blue/Black |
| Chuck Type |
Keyless Sds |
| Model Name |
right angle |
| Type |
Rotary Hammer Drill |
| Handle Type |
pistol grip |
| Vibration Measurement |
6 m/sec.sq |
| Maximum Capacity in Steel |
13 mm |
| Torque |
18 Nm |
| Maximum Capacity in Wood |
30 mm |
| Reverse Rotation |
Yes |
| Chuck Size |
22.1 mm |
| Model Number |
GBH 2-22 RE |
| No Load Speed |
0-1000 RPM |
| Number of Speeds |
2 |
| BPM Range |
0 - 4400 bpm |
| Maximum Capacity in Concrete |
22 mm |
Dimensions
| Other Dimensions |
lentgh 342mm |
| Weight |
2.3 kg |
| Width |
3 cm |
| Length |
34 cm |
Additional Features
| Vibration Control |
No |
| Cord Length |
3 m |
| Other Features |
Auxiliary handle with adjustable depth stop can be rotated 360° Toolholder SDS-plus, Control Electronic: accelerator function for sensitive pilot drilling |
| Spindle Lock |
Yes |
| Case Included |
Yes |
| Variable Speed Trigger |
Yes |
Power Features
| Maximum Power Output |
620 W |
| Power Requirement |
220-240/50htz |
| Power Source |
Corded |
| Other Power Features |
Max.Capacity in Metal 13 mm, Max.Capacity in Wood 30 mm |
Warranty
| Warranty Summary |
6 months warranty for armature only |
| Covered in Warranty |
6 Months Warranty For Armature |
| Warranty Service Type |
service can be done at all bosch service centre |
| Not Covered in Warranty |
Field Coil, Chuck, Mechanism |
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
