Champion HP-800 800 VA Smart Home Inverter Specifications

Convenience Features

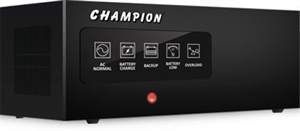

Display Indicator Functions Mains working - White Light, Battery Charging - White Light, Inverter working - Yellow Light, Battery low alarm - Red Light, Overload/Fault - Red Light
Display Type Indicator Lamp
Emergency Power Off Yes
Protection Against Overload Protection, Short Circuit Protection, Low Voltage Protection
Cooling System Fan System - Air Cooling
Audible Indicator Functions Battery Low Protection - Buzzer Long Beep, Battery Low - One Beep Per Sec, Overload - Buzzer Long Beep, <130% Overload - One Beep Per Sec, Inverter Failure - Buzzer Long Beep
USB Charging Port No

In The Box

Only Inverter

Environmental Features

Noise Level <45 dB
Other Environmental Features Relative Humidity: -10 deg C to 90 deg C (non condensing)
Storage Temperature -15 to 45
Operating Temperature 0 to 40

General

Brand Champion
Type Pure Sine Wave Inverter
Battery Included No
Model Name Smart Home Power
Model Number HP-800VA
Back Up Time 8 hrs
Load Options 1x200W Computer / 1x150W TV / 4x40W Tubelight / 5x10W CFL / 4x60W Fans
Solar Power Compatible No
Technology Used Pure Sine Wave Technology, Microcontroller PWM-MOSFET Technology

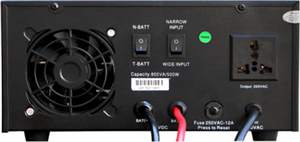

Switch Type Power Active Switch, Battery Type Selection Switch, Input Type Selection Switch, Reset Switch

Battery Features

Recharge Time 8 hours
Replacement Battery Yes
Number of Batteries 1x12V
Battery Boost Voltage 13.7 + 0.5
Battery Type External Lead Acid Battery
Battery Voltage 12
Compatible Battery Make Any battery of 12V
Other Battery Features Battery Charging Voltage Range: 140-280 VAC
Replacement Battery Type External Lead Acid Battery
Battery Charging Current 12

Additional Features

Corrosion Resistant Yes
Certification Total Quality Assurance with ISO 9001 : 2008 certified by ABS quality Evaluations Inc USA and ISO 14001:2004 certified by MAX Certifications Pvt Ltd, Mumbai

Input Features

Input Frequency 50 Hz +/- 5%
Input Voltage 120-290 VAC +/- 5V (Normal Mode) & 180-260 VAC +/- 5V (UPS Mode)

Dimensions

Weight 10 kg
Height 16 cm
Width 33 cm
Depth 31.2 cm

Output Features

Efficiency 95 %
Output Voltage 220 VAC +/- 10%
Change Over Time 30 ms
Overload 1.3
Output Frequency 50 Hz +/- 1%
Output Power 500 W
Change Over Voltage 220 VAC +/- 10%
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
