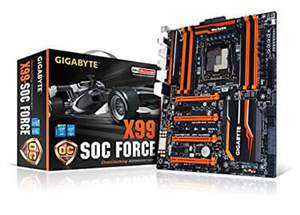

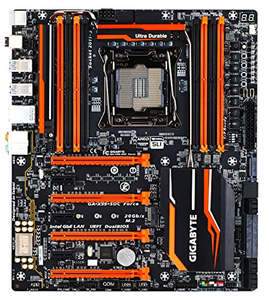

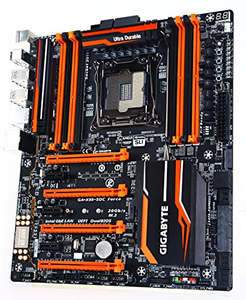

Gigabyte GA-X99-SOC FORCE LGA2011v3 DDR4 Motherboard

Gigabyte GA-X99-SOC FORCE LGA2011v3 DDR4 Motherboard Share on

₹42699.00

Latest Motherboards

Intel Motherboards - Intel DQ87PG Motherboard
Intel Motherboards

Intel DQ87PG Motherboard

₹8000.00
Asus Motherboards - ASUS H110I-PLUS Motherboard
Asus Motherboards

ASUS H110I-PLUS Motherboard

₹13999.00
MSI Motherboards - MSI Z370 Tomahawk DDR4 Motherboard
MSI Motherboards

MSI Z370 Tomahawk DDR4 Motherboard

₹21000.00
Zebion Motherboards - Zebion G-41 DDR3 Motherboard
Zebion Motherboards

Zebion G-41 DDR3 Motherboard

₹2300.00
Zebronics Motherboards - Zebronics G41 D3 Motherboard
Zebronics Motherboards

Zebronics G41 D3 Motherboard

₹2696.00
Zebronics Motherboards - Zebronics ZEB55 Motherboard
Zebronics Motherboards

Zebronics ZEB55 Motherboard

₹3599.00
Zebronics Motherboards - Zebronics ZEB-Z31 Motherboard
Zebronics Motherboards

Zebronics ZEB-Z31 Motherboard

₹2595.00
Intel Motherboards - Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard
Intel Motherboards

Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard

₹45000.00
Intel Motherboards - Intel Desktop Board DZ77GAL-70K Motherboard
Intel Motherboards

Intel Desktop Board DZ77GAL-70K Motherboard

₹17500.00
Intel Motherboards - Intel Dg41Rq Motherboad
Intel Motherboards

Intel Dg41Rq Motherboad

₹7786.00

Gigabyte GA-X99-SOC FORCE LGA2011v3 DDR4 Motherboard Specifications

In The Box

Sales Package Motherboard, Manuals

General

Brand Gigabyte
Model ID GA-X99-SOC FORCE

Essentials

Form Factor EATX
Socket Type LGA 2011
Compatible Processors Intel Core i7 Processor
Chipset Intel X99 Express
Chipset Manufacturer Intel

Connectivity

Ethernet Controller Intel GbE
Ethernet Features 10/100/1000 Mbit

Memory

Number of Memory Slots 8 Slots
Memory Configuration 64 DDR4 Quad Channel DIMM
Memory Frequency 2400 (O.C) MHz, 2666 (O.C) MHz, 2133 MHz, 2800 (O.C) MHz
ECC Support Non-ECC

Storage

SATA 6 Gb/s Intel X99 Express
RAID Controller Intel X99 Express
RAID Configurations 0, 1, 5, 10

Audio

Audio Codec Realtek ALC1150
Audio Channels 7.1
Audio Features High Definition Audio, Support for S/PDIF Out

Graphics

Multi GPU Support Support for 4-Way, 3-Way, 2-Way AMD CrossFire, NVIDIA SLI Technology

Expansion Slots

PCIe x1 Slots, Generation 3, 2.0
PCIe x16 Slots, Generation 4, 3.0

Internal I/o Headers

ATX Power Connectors 1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
SATA 6 Gb/s Headers 10
USB 2.0 Headers 2
USB 3.0 Headers 1
Fan Headers 1 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers 1
Other Connectors 1 x Thunderbolt Add-in Card Connector, 1 x S/PDIF Out Header, 1 x OC Tag Button, 1 x Water Cooling Fan Header (CPU_OPT), 1 x Serial Port Header, 1 x OC Trigger Switch, 1 x CPU BCLK Up Button, 1 x CPU Ratio Down Button, 1 x CPU Ratio Up Button, 1 x CPU BCLK Down Button, 1 x Dual BIOS Switch, 1 x OC P...View More 1 x Thunderbolt Add-in Card Connector, 1 x S/PDIF Out Header, 1 x OC Tag Button, 1 x Water

Back Panel Ports

USB 2.0 Ports, Controller 4
USB 3.0 Ports, Controller 8
Audio I/O Channels 5
RJ-45 Ethernet Jacks 1
Optical S/PDIF Ports and S/PDIF Out ports 1 (Optical S/PDIF Ports)
PS/2 1
Other Ports 1 x CPU Overclocking Button, 1 x BIOS Switch Button, 1 x Clear CMOS Button

General Features

Bundled Software Norton Internet Security (OEM Version), Intel Smart Response Technology
Hardware Monitoring System Voltage Detection, CPU/System/Chipset Temperature Detection, CPU/CPU OPT/System Fan Speed Detection, CPU/System/Chipset Overheating Warning, CPU/CPU OPT/System Fan Fail Warning, CPU/CPU OPT/System Fan Speed Control
OS Support 8, Window: 7, 8.1
BIOS 2 x 128 Mbit Flash, Use of Licensed AMI UEFI BIOS, Support for Dual BIOS, Support for Q-Flash Plus, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Features Support for APP Center - at BIOS, EZ Setup, ON/OFF Charge, System Information Viewer, USB Blocker, V-Tuner, I/O Controller: iTE I/O Controller Chip, Fast Boot, Cloud Station, Smart TimeLock, Support for Q-Flash, Support for Smart Switch, Support for Xpress Install, EasyTune, Ambient LED, Smart Recov...View More Support for APP Center - at BIOS, EZ Setup, ON/OFF Charge, System Information Viewer, USB
Advanced Features L3 Cache Varies with CPU, Support for Extreme Memory Profile (XMP) Memory Modules, Support for RDIMM 1R x 8 Memory Modules (Operates in Non-ECC Mode)
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
