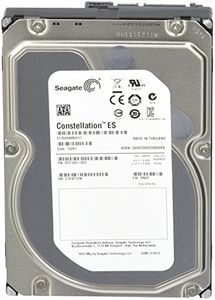

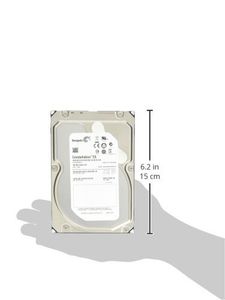

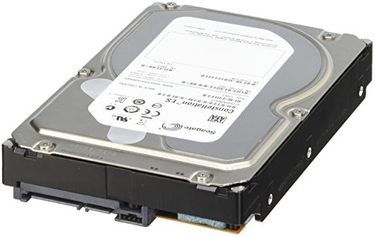

Seagate Constellation ES (ST2000NM0011) 2TB SATA Desktop Internal Hard Disk Specifications
General
| Brand | Seagate |
| Series | Constellation ES |
| Model ID | ST2000NM0011 |
Drive Configuration
| Form Factor | 3.5 inch |
| Device | Desktop |
| Device Type | 3.5 inch HDD |
| Drive Capacity | 2 TB |
| Spin Speed | 7200 rpm |
| Interface | SATA 6.0 Gbps |
| Transfer Rate | 1176 Mbps |
| Reliability | 300000 (Load/Unload Cycles), 1200000 hours (Mean Time between Failures) |
| Cache Memory | 64 MB |
| I/O Transfer Rate | 4800 Mbps |
| Average Latency | 4.16 ms |
| Average Seek Time | 8.5 ms (Read), 9.5 ms (Write) |
| Non-recoverable Read Error | 1 per 10^15 |
Power
| Idle | 6.24 W |
| Power Consumption | 8.94 W (Read/Write) |
| Standard Input Voltage | 12 V, 5 V DC |
| Maximum Start Current | 2.1 A |
Dimensions
| Dimensions | 101.8 x 26.1 x 147 mm |
| Weight | 710 g |
Operating Conditions
| Operating Temperature | 5DegC to 60DegC |
| Non-Operating Humidity | 5 % - 95 % |
| Non-Operating Temperature | -40DegC to 70DegC |
| Shock Tolerance | 70 G for 2 ms (Operating), 300 G for 2 ms (Non-Operating) |
| Operating Humidity | 5 % - 90 % |
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
