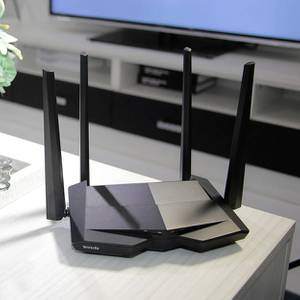

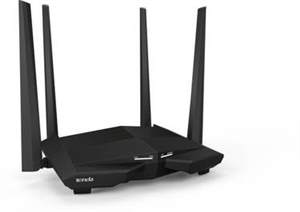

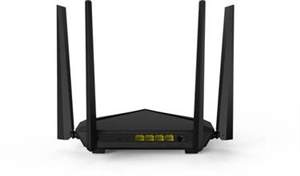

Tenda AC10 AC1200 Gigabit Router Specifications
Additional Features
| VPN | PPTP Client PPTP Server L2TP Client |
| SSID Support | SSID Broadcast and Hide Beamforming |
| Certification | CE, FCC, RoHS, BSMI, NCC, EAC, IC |
| Other Features | Smart Wi-Fi Schedule Smart Power Saving Smart LED On/Off |
Connectivity
| USB | 2.0 Port |
| Number of USB Ports | 1 |
| LAN | RJ-45 |
| WAN | RJ-45 |
| Antennae | External |
| Antennae Capacity | 20 dBi |
| Number of Antennae | 4 |
| Number of LAN ports | 3 |
| Number of WAN ports | 1 |
Dimensions
| Weight | 350 |
| Depth | 141 |
| Width | 220 |
| Height | 4 |
General
| Color | Black |
| Series | AC 1200 |
| Type | Wireless Without Modem |
| Brand | TENDA |
| Model | AC-10 |
| Controls | 1 WiFi On/Off button, 1 Reset/WPS button |
| In The Box | AC1200 Smart Dual-Band Gigabit WiFi Router, Power Supply, Ethernet Cable, Quick Installation Guide |
| LED Indicator | 1*WAN?1*LAN?1*Wi-Fi/WPS?1*SYS |
| Installation Features | Quick Installation Guide |
Network Features
| Frequency Band | Dual Band |
| Frequency | 2.4, 5 |
Operating Conditions
| Temperature | Operating Environment:0?~40? Storage Environment:-40?~70? |
| Operating Humidity | Operating Environment:10%~90% RH non-condensing Storage Environment:5%~90% RH non-condensing |
Power
| Power Consumption | 20 |
| Power Supply | DC 12V==2A |
Security
| Firewall | Flood Attack Forbid TCP Flood Attack Forbid ICMP Flood Attack Forbid WAN Ping from Internet PPTP Pass Through L2TP Pass Through IPSec Pass Through |
| Encryption | WPA-PSK, WPA2-PSK, WPA/WPA2 Wireless Security: Enable/Disable WPS Fast Encryption |
| Other Security Features | Smart Wi-Fi Schedule Smart Power Saving Smart LED On/Off |
Supported Protocols
| Standard IEEE | Wireless Standards:IEEE 802.11ac/n/a 5GHz IEEE 802.11n/g/b 2.4GHz Wired Standards:IEEE 802.3, IEEE 802.3u |
Speed
| LAN/WAN | 1200 |
| Wireless Speed | 1200 |
