Cooler Master CM 693 Cabinet Specifications
General
| Motherboard Supported | ATX, microATX |
| Type | Mid Tower |
| Material | Polymer, Front Mesh Bezel |
| Part Number | CMS-693-GWN1 |
Power
| Power Supply Enclosure | Standard ATX PS2 enclosure |
Dimensions
| Maximum Graphics Card Size | 16.6 inch |
| Weight | 8.9 kg |
| Dimensions | 230 x 507 x 502 mm |
| Maximum Cooling Unit Height Supported | 171 mm |
Warranty
| Service Type | If There is Any Technical Issue with the Products Kindly Contact the Service Center of the Concerned Brands |
Bays And Expansion Slots
| SSD Drive Bays | 7 (2.5 inch SSD Bay) |
| 3.5 inch Bays | 7 (Internal) |
| Cable Management | Yes |
| 5.25 inch Bays | 3 (Internal) |
| Other Drive Bays | 1 Under the ODD Cage, 1 Behind the M / B Tray, 1 at the Bottom |
| Expansion Slots | 8 |
Ports And Slots

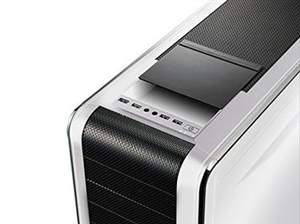

| Other USB Ports | 2 x USB 2.0, 2 x USB 3.0 |
| Other Connectors | Audio In and Out (Supports AC97 / HD Audio) |
Cooling
| Coolers - Front | 2, 240 mm (Radiator), 200 mm (Fan) |
| Coolers - Top | 1, 240 mm (Radiator) |
| Radiator Support | Yes |
| Coolers - Rear | 2, 120 mm (Radiator), 120 mm (Fan) |
| Cooling Solution Support | Yes, Fan, Radiator |
