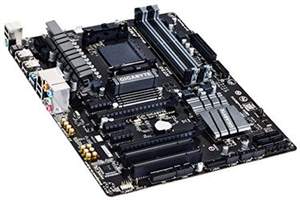

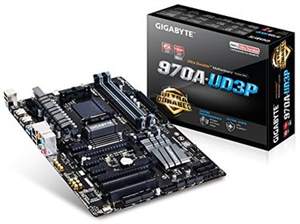

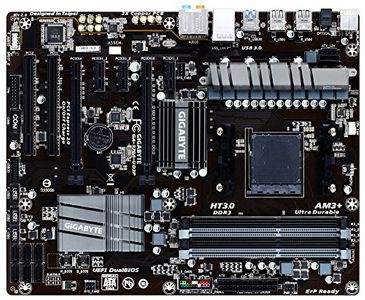

Gigabyte GA-970A-UD3P Motherboard

Name: Gigabyte GA-970A-UD3P Motherboard
Brand: Gigabyte Motherboards
Availability: InStock
Rating: 4.5 (600 reviews)

Gigabyte GA-970A-UD3P Motherboard-thumb-1

Gigabyte GA-970A-UD3P Motherboard-thumb-2

Gigabyte GA-970A-UD3P Motherboard-thumb-3

Gigabyte GA-970A-UD3P Motherboard-thumb-4

Gigabyte GA-970A-UD3P Motherboard-thumb-5

Gigabyte GA-970A-UD3P Motherboard Share on

Gigabyte Motherboards

₹13486.00

Latest Motherboards

Intel Motherboards

MSI Z370 Tomahawk DDR4 Motherboard

₹21000.00

Zebion Motherboards

Intel DBS2600CW2 Chipset Dual Socket R3 (LGA2011v3) DDR4 RAM Server Motherboard

₹45000.00

Intel Motherboards

Intel Desktop Board DZ77GAL-70K Motherboard

₹17500.00

Intel Motherboards

Gigabyte GA-970A-UD3P Motherboard Specifications

In The Box

Sales Package

Motherboard, Manuals

General

Brand	Gigabyte
Model ID	GA-970A-UD3P

Essentials

Form Factor	ATX
Socket Type	AM3
Compatible Processors	AMD AM3 Phenom II Processor, AMD Athlon II Processor, AMD AM3+ FX Processors
Chipset	AMD 970, AMD SB950
Chipset Manufacturer	AMD

Connectivity

Ethernet Controller	Realtek GbE
Ethernet Features	10/100/1000 Mbit

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 GB DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1866 MHz, 2000 (O.C) MHz, 1333 MHz, 1600 MHz

Storage

SATA 6 Gb/s	AMD SB950
RAID Controller	AMD SB950
RAID Configurations	0, 1, 5, 10

Audio

Audio Codec	VIA VT2021
Audio Channels	7.1
Audio Features	High Definition Audio, Support for S/PDIF Out

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2.0, 3
PCIe x16 Slots, Generation	2, 2.0

Internal I/o Headers

ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
SATA 6 Gb/s Headers	6
USB 2.0 Headers	3
USB 3.0 Headers	1
Fan Headers	1 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Front Panel Audio Header, 1 x S/PDIF Out Header, 1 x Serial Port Header, 1 x Clear CMOS Jumper, 1 x Power Fan Header

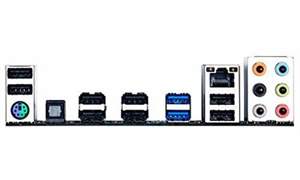

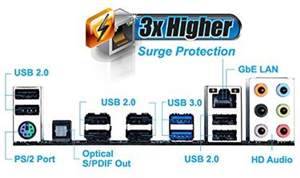

Back Panel Ports

USB 2.0 Ports, Controller	8
USB 3.0 Ports, Controller	2
Audio I/O Channels	6
RJ-45 Ethernet Jacks	1
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
PS/2	1

General Features

Bundled Software	Norton Internet Security (OEM Version)
Hardware Monitoring	System Voltage Detection, CPU / System Temperature Detection, CPU / System / Power Fan Speed Detection, CPU Overheating Warning, CPU / System / Power Fan Fail Warning, CPU / System Fan Speed Control
OS Support	Windows: XP, Vista, 7, 8
BIOS	2 x 32 Mbit Flash, Use of Licensed AMI EFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Features	Back Panel Connectors: 6 x Audio Jacks (Center, JBOD, Support for Xpress Install, Side Speaker Out, I/O Controller: iTE I/O Controller Chip, Line In, Multi-display Support with AMD CrossFire, Support for Q-Flash, Hyper Transport Bus: 4800 MT/s, Support for BIOS, Support for EasyTune, Support for Sma...View More Back Panel Connectors: 6 x Audio Jacks (Center, JBOD, Support for Xpress Install, Side Spe
Advanced Technologies	UEFI DualBIOS Technology, On/Off Charge Technology, Gigabyte Ultra Durable 4 Technology
Advanced Features	ErP Lot 6 Support, Gigabyte 333 Onboard Acceleration, Supports Next Generation of 45 nm AMD AM3 CPU

Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
