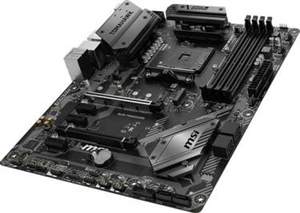

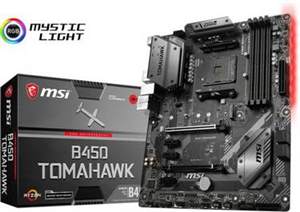

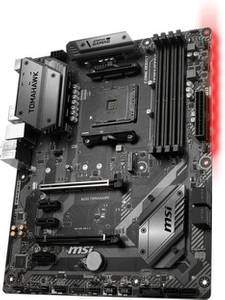

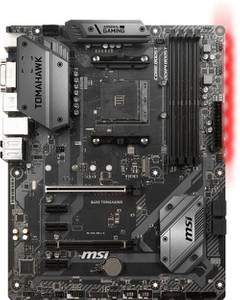

MSI (B450) Tomahawk Motherboard Specifications
In The Box
| Sales Package |
MOTHERBOARD, I/O SHIELD, USER MANUAL, 2 SATA CABALES, DRIVER DISK |
General
| Brand |
MSI |
| Model ID |
B450 TOMAHAWK |
Essentials
| Form Factor |
ATX |
| Socket Type |
AM4 |
| Compatible Processors |
RYZEN |
| Chipset |
AMD B450 |
| Chipset Manufacturer |
AMD® B450 Chipset |
Memory
| Memory Configuration |
64 DDR4 DIMM |
Audio
| Audio Codec |
Realtek® ALC892 Codec |
| Audio Channels |
7.1 |
| Audio Features |
7.1-Channel High Definition Audio |
Graphics
| External Graphics Card Support |
Yes |
| Integrated Graphics card |
2-way CrossFire |
Internal I/o Headers
| ATX Power Connectors |
2 (4 Pin EATX), 1 (24 Pin ATX Power Connectors) |
| USB 2.0 Headers |
2 |
| USB 3.0 Headers |
1 |
| Fan Headers |
1 (Processor Fan Headers), 1 (System Fan Headers) |
| VGA/Dsub Connectors |
0 |
| Other Connectors |
BIOS FLASHBACK+ Button PS/2 Combo Port USB 3.1 Gen1 LAN Port HD Audio Connectors USB 2.0 Port DVI-D Port HDMI Port USB 3.1 Gen2 Type A+C |
Back Panel Ports
| USB 2.0 Ports, Controller |
2 |
| USB 3.0 Ports, Controller |
3 |
| VGA/D Sub Ports |
0 |
| DVI Ports |
1 |
| Audio I/O Channels |
6 |
| HDMI Ports |
1 |
| RJ-45 Ethernet Jacks |
1 |
| PS/2 |
1 |
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
