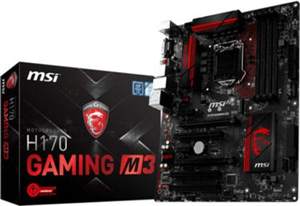

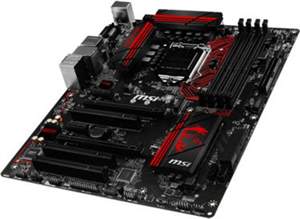

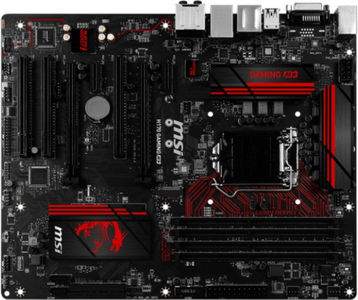

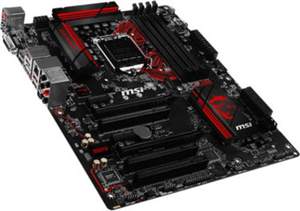

MSI H170 Gaming M3 MotherBoard Specifications
In The Box
| Sales Package |
Motherboard, User Guide |
General
| Brand |
MSI |
| Model ID |
H170 GAMING M3 |
Essentials
| Form Factor |
ATX |
| Socket Type |
LGA1151 |
| Compatible Processors |
Intel H170 |
| Chipset |
Intel H170 |
| Chipset Manufacturer |
Intel |
Memory
| Memory Configuration |
64 GB DDR4 Dual Channel DIMM |
| Memory Frequency |
2133 MHz |
| ECC Support |
ECC |
| Buffered Memory |
No |
Audio
| Audio Codec |
Realtek® ALC1150 Codec |
| Audio Channels |
7.1 |
| Audio Features |
Realtek® ALC1150 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output |
Graphics
| Integrated Graphics card |
Only with iGPU-ready CPU |
Internal I/o Headers
| Other Connectors |
- 1 x PS/2 keyboard/ mouse port - 4 x USB 2.0 ports - 1 x DVI-D port - 1 x HDMI™ port - 4 x USB 3.1 Gen1 ports - 1 x LAN (RJ45) port - 1 x Optical S/PDIF OUT connector - 5 x OFC audio jacks, - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 6 x SATA 6Gb/s connectors - 1 x S...View More
- 1 x PS/2 keyboard/ mouse port - 4 x USB 2.0 ports - 1 x DVI-D port - 1 x HDMI™ port |
Back Panel Ports
| USB 2.0 Ports, Controller |
6 |
| HDMI Ports |
1 |
| PS/2 |
2 |
