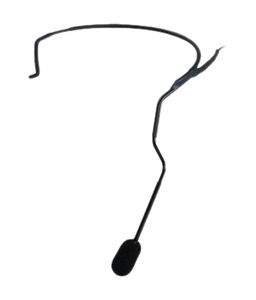

Shure WCM16 Hyper-Cardioid Headworn Microphone Specifications
General Features
| Brand |
Shure |
| Model |
WCM16 |
| Type |
Condenser (electret bias) |
| Case |
Matte black enamel |
Warranty
| Period |
1 Year Shure India Warranty |
Specifications
| Frequency Response |
50 to 18000 Hz |
| Polar Pattern |
Hypercardioid, Uniform With Frequency |
| Output Impedance |
1200 Ohm |
| Applications |
Live Vocals |
| Compatible |
Headworn |
| Signal-to-Noise Ratio |
65 dB at 94 dB SPL |
| SPL |
Maximum SPL (at 1% THD): 150 dB |
| Polarity |
Microphone: Positive sound pressure on diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground) of microphone output connector; Receiver - 1/4 inch Phone Jack Output: Positive sound pressure on diaphragm produces positive voltage on tip of receiver 1/4 inch output connector; XLR Output: Positive sound pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 of the XLR output connector |
| Power Requirement |
Plus 5 Vdc (positive on pin 2, negative on pin 1) |
| Output Level |
Open Circuit Voltage: -55.0 dbV (1.8 mV) at 0.6 m (1 Pascal Equals 94 db SPL) |
| Connector |
4-pin mini connector |
Additional Features
| Features |
Extra lightweight, adjustable headband stays secure and virtually disappears while being worn; Response comparable to finest conventional vocal microphones; Hypercardioid polar pattern provides maximum isolation from vocalist's own instrument and those of other performers; Uniform polar pattern at all frequencies for maximum gain before feedback; High input clipping level eliminates overload distortion; Cable terminates as 4-pin mini connector, Windscreen included, Reliable at temperature and hu |
