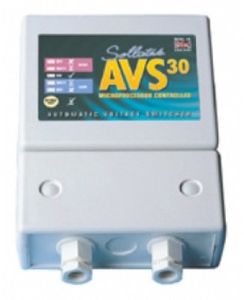

Sollatek Voltshield AVS30 Voltage Stabilizer

Sollatek Voltshield AVS30 Voltage Stabilizer Share on

N/A

Latest Voltage Stabilizers

Servokon Voltage Stabilizers - Servokon SK005-140 Main Line Voltage Stabilizer
Servokon Voltage Stabilizers

Servokon SK005-140 Main Line Voltage Stabilizer

N/A
V-Guard Voltage Stabilizers - V-Guard VGMW 500 Digital Main Line Voltage Stablizer
V-Guard Voltage Stabilizers

V-Guard VGMW 500 Digital Main Line Voltage Stablizer

N/A
Bluebird Voltage Stabilizers - Bluebird 150-280V Voltage Stabilizer
Bluebird Voltage Stabilizers

Bluebird 150-280V Voltage Stabilizer

N/A
Bluebird Voltage Stabilizers - Bluebird 4KVA 130-280V Economy Voltage Stabilizer
Bluebird Voltage Stabilizers

Bluebird 4KVA 130-280V Economy Voltage Stabilizer

N/A
Electro Voltage Stabilizers - Electro Air Conditioner Voltage Stabilizer
Electro Voltage Stabilizers

Electro Air Conditioner Voltage Stabilizer

N/A
Servokon Voltage Stabilizers - Servokon SK003-140 Main Line Voltage Stabilizer
Servokon Voltage Stabilizers

Servokon SK003-140 Main Line Voltage Stabilizer

N/A
Syscom Voltage Stabilizers - Syscom SYSSW013 TV Voltage Stabilizer
Syscom Voltage Stabilizers

Syscom SYSSW013 TV Voltage Stabilizer

N/A
Syscom Voltage Stabilizers - Syscom STB-400 Voltage Stabilizer
Syscom Voltage Stabilizers

Syscom STB-400 Voltage Stabilizer

N/A
Pulstron Voltage Stabilizers - Pulstron PTI-4140 Voltage Stabilizer
Pulstron Voltage Stabilizers

Pulstron PTI-4140 Voltage Stabilizer

N/A
Pulstron Voltage Stabilizers - Pulstron PTI-5520 Voltage Stabilizer
Pulstron Voltage Stabilizers

Pulstron PTI-5520 Voltage Stabilizer

N/A

Sollatek Voltshield AVS30 Voltage Stabilizer Specifications

General

Brand Sollatek
Type Voltage Guard
Model ID Voltshield AVS30
Compatible Devices Air Conditioners, Large Fridge and Freezers, Whole Office and Complete Circuits
Used For AC

Performance Features

Other Performance Features 20 Millisecs Over Voltage Response Time, Adjustable 05-10 secs Under Voltage Response Time, Adjustable 10 secs to 10 mins Wait Time, 20 Millisec Brown-out Response Time
Manual Reset Yes

Power Features

Nominal Input Power (V) 230 V
Other Power Features 30 Amps Maximum Power, 30 Amps Loadc Current, 30 V-300 V Over Voltage Disconnect, 2 V Below HVD Over-voltage Reconnect, 150 V-230 V Under-voltage Disconnect, 5 V Above LVD Under-voltage Reconnect, 320 V Max Supply, 110 Amps Inrush Current, 100 mA Maximun Consumption Direct Via Brass Screw Terminal S...View More 30 Amps Maximum Power, 30 Amps Loadc Current, 30 V-300 V Over Voltage Disconnect, 2 V Belo

Body

Mount Type Wall
Display Type Yes

Safety Features

Under Volt Protection Yes
Surge Protection Yes
Over Volt Protection Yes
Other Safety Features Fuse Protection

Dimensions

W x H x D 132 x 210 x 53 mm
Weight 0.5 kg
Disclaimer: Specifications shown may be different from the actual product. We cannot guarantee that the information provided on this page is 100% correct. Please check with the retailer before purchasing.
