| Series | TD Series |
| Display | 22 inch LED Display |
| Sales Package | 1 TD2220-2 display, 1power cable, 1audio cable, 1 adapter, 1VGA cable, 1DVI cable, 1Quick Start Guide, CD |
| Backlight | LED Backlight |
| Panel Type | TN |
| Color | Black |
| Resolution | 1920 x 1080 pixels |
| HD | Yes |
| 3D | No |
| Part Number | TD2220 |
| Full HD | Yes |
| Screen Resolution Type | Full HD |
| Model Name | TD2220-2 |
| Screen Form Factor | Flat |
| Display Screen Coating | Anti-glare, 8H Hard Coating |
| HD Standard | 1080p |
| Number of Colors | 16.7 M Colors |
| Maximum Refresh Rate | 76 Hz (Digital) |
| Contrast Ratio | Sat Feb 10 16:01:00 IST 1900, 20000000:1 (Dynamic) |
| Horizontal Viewing Angle | 170° (3D) |
| Vertical Viewing Angle | 160° (2D) |
| Response Time | 5 ms |
| Brightness | 200 nits (2D) |
| Color Gamut | sRGB |
| Horizontal Scanning Frequencies | 50 - 76 kHz (Analog), 50 - 76 kHz (Digital) |
| Other Display Features | Light Source: 40000 hrs (Min) |
| Speakers | Yes |
| Inbuilt Speaker | Yes |
| Other Audio Features | SRS Premium Sound |
| Headphone Jack | Yes |
| Power Requirement | AC 90-240 V, 50/60 Hz |
| Power Consumption | 43 W (Operational), 26 W (Standby) |
| Other Power Features | (Eco Mode) Optimize: 21 W, Conserve: 18 W |
| Touch Accuracy | 2.5 mm Over 95% of Touchable Area |
| Touchscreen Support | Yes, Supported by Dual Optical Touch |

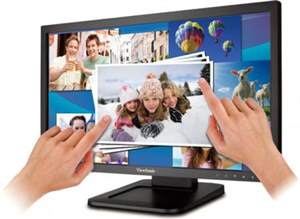

| Other Touchscreen Features | High Light Transmission, Sliding, Rotating, Zooming Other Intuitive Operation, Multi-touch Screen |
| Touch Capabilities | Windows 7 Multi-touch Gestures |
| HDMI | No |
| VGA | Yes |
| DVI | Yes |
| Display Port | Yes |
| Other Connectivity Features | Internal Power Adapter, 3-pin Plug (CEE22), DVI-D (with HDCP) |
| USB | 2 x USB 2.0 Port |
| Audio In | No |
| Operating Temperature | 0 - 40° C |
| Operating Humidity Range | 20 - 90 % |

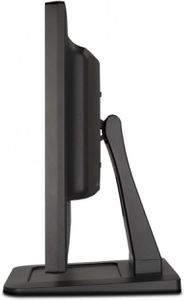

| Stand | Tilt |
| Stand Tilt | 5° to 20° |

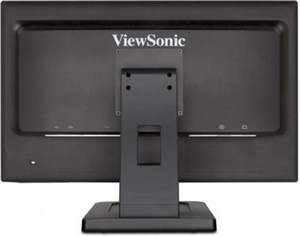

| Wall Mounting | 100 x 100 mm |
| Wall Mount Standard | VESA Mount |
| Security Lock Slot | Kensington Lock |
| Controls | Mode Key, Eco Mode |
| HDCP Support | Yes |
| Plug and Play | Yes |
| System Requirements | Windows Vista, Windows 7 |
| Other Features | PC Compatibles: VGA upto 1920 x 1080, Mac Compatible upto 1920 x 1080, Separate Sync, Composite Sync, SOG, Regulations (CE, CB, BSMI, PSB, SASO, C-tick, e-standby, KC, UL/cUL, FCC-B (Including ICES003), UL CoC, Mexico, Energy, GOST-R/Hygienic, UkrSEPRO, TCO 5.2, Erp, CCC, China Energy, Energy Star, ...View More PC Compatibles: VGA upto 1920 x 1080, Mac Compatible upto 1920 x 1080, Separate Sync, Comp |
| Width | 511 mm |
| Height | 365 mm |
| Depth | 240 mm |
| Weight | 4.9 kg |
